Teraflex 5" Pro LCG Long Flexarm Suspension System w/ High Steer & 9550 Shocks (97-06 Jeep TJ/Wrangler)
Be the first to review this product
The product images shown are for illustration purposes only and may not be an exact representation of the product.
$7280.99
to the lower 48
Starting At $253/mo with
Part Number
Brand: TeraFlex
1249580-TF
Details
The TeraFlex TJ Pro LCG Long Flexarm Suspension System is designed for the aggressive off-road enthusiast who wants the best suspension performance for both rock crawling and high-speed performance. This system is designed as a complete kit and includes all necessary components.
Up front, the Pro LCG suspension system expands the performance of the LJ Wrangler Unlimited's traditional 5-link suspension configuration with our upper long flexarms, which are more than 9 inches longer than the stock arms. Around back, we replace the stock 5-link suspension and track bar with a new triangulated 4-link rear suspension.
The rear upper brackets feature adjustable anti-squat tunability to fine tune the suspension.
Features
- LJ Unlimited 5 Inch Pro LCG Long Flexarm Suspension System w/ High Steer and 9550 Shocks
- Maximum ground clearance w/ a low center-of-gravity
- Allows suspension travel for off-road articulation
- Adjustable anti-squat tunability to fine tune the suspension
- Front upper long flexarms
- 4-link truss and rear upper flexarm geometry eliminates rear track bar
- HD 1-3/4 inch x 0.281 inch wall DOM tubing lower flexarms for superior strength
- Fits all OEM axles including Dana 30, 35, 44, and Rubicon 44
- Sold As A Kit
Install Time
23 HoursNotes
- This is a very heavy item and must be shipped by freight truck
- Cutting and welding required
- Requires exhaust modification w/ custom cat-back exhaust
- Full wheel alignment required
- CV-style driveshaft and Extreme Short Shaft SYE kit recommended
- Rubicon models require compressor mount plate (P/N 4847400)
- Wheel spacers needed w/ stock wheels and tires larger than 32 inches - especially w/ Rubicon wheels
- Transfer case lowering kit recommended for standard-wheelbase Rubicon
- Requires transfer case slip-yoke eliminator kit
- Also available w/ shocks and w/out LCG High Steer Kit (P/N 1249585)
- Also available w/out High Steer Kit or shocks (P/N 1449585)
- Does not fit standard-wheelbase TJ Wrangler
- Also available for short-wheelbase TJ Wrangler Unlimited w/ LCG High Steer Kit and shocks (P/N 1249570); or w/ shocks and w/out LCG High Steer Kit (P/N 1249575); or w/out High Steer Kit or shocks (P/N 1449575)

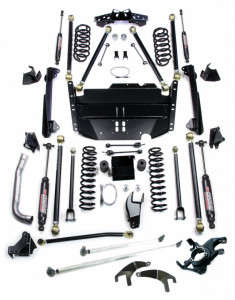

What's Included
- 5 inch lift coil springs
- Lower long flexarms - all 4
- Front upper long flexarms and brackets - pair
- Rear upper 4-link long flexarms and brackets - pair
- 4-link truss
- Adjustable front track bar
- LCG High Steer Kit (P/N 194900)
- TeraFlex 9550 VSS shocks - set of 4
- All necessary hardware
- And more
Fitment
- 2006 Jeep TJ Rubicon 4WD
- 2003 Jeep TJ Rubicon 4WD
- 2006 Jeep TJ Rubicon 4WD
- 2005 Jeep TJ Rubicon 4WD
- 2004 Jeep TJ Rubicon 4WD
- 2003 Jeep TJ Rubicon 4WD
- 2006 Jeep TJ SE 4WD
- 2005 Jeep TJ SE 4WD
- 2004 Jeep TJ SE 4WD
- 2003 Jeep TJ SE 4WD
- 2002 Jeep TJ SE 4WD
- 2001 Jeep TJ SE 4WD
- 2000 Jeep TJ SE 4WD
- 1999 Jeep TJ SE 4WD
- 1998 Jeep TJ SE 4WD
- 1997 Jeep TJ SE 4WD
- 2006 Jeep TJ Sport 4WD
- 2005 Jeep TJ Sport 4WD
- 2004 Jeep TJ Sport 4WD
- 2003 Jeep TJ Sport 4WD
- 2002 Jeep TJ Sport 4WD
- 2001 Jeep TJ Sport 4WD
- 2000 Jeep TJ Sport 4WD
- 1999 Jeep TJ Sport 4WD
- 1998 Jeep TJ Sport 4WD
- 1997 Jeep TJ Sport 4WD
- 2006 Jeep TJ Unlimited 4WD
- 2005 Jeep TJ Unlimited 4WD
- 2004 Jeep TJ Unlimited 4WD
- 2006 Jeep TJ Unlimited Rubicon 4WD
- 2005 Jeep TJ Unlimited Rubicon 4WD
- 2004 Jeep TJ Sahara 4WD
- 2003 Jeep TJ Sahara 4WD
- 2002 Jeep TJ Sahara 4WD
- 2001 Jeep TJ Sahara 4WD
- 2000 Jeep TJ Sahara 4WD
- 1999 Jeep TJ Sahara 4WD
- 1998 Jeep TJ Sahara 4WD
- 1997 Jeep TJ Sahara 4WD
- 2006 Jeep Wrangler 65th Anniversary Edition 4WD
- 2006 Jeep Wrangler 65th Anniversary Edition 4WD
- 2006 Jeep Wrangler Rubicon 4WD
- 2005 Jeep Wrangler Rubicon 4WD
- 2004 Jeep Wrangler Rubicon 4WD
- 2003 Jeep Wrangler Rubicon 4WD
- 2006 Jeep Wrangler SE 4WD
- 2005 Jeep Wrangler SE 4WD
- 2004 Jeep Wrangler SE 4WD
- 2003 Jeep Wrangler SE 4WD
- 2002 Jeep Wrangler SE 4WD
- 2001 Jeep Wrangler SE 4WD
- 2000 Jeep Wrangler SE 4WD
- 1999 Jeep Wrangler SE 4WD
- 1998 Jeep Wrangler SE 4WD
- 1997 Jeep Wrangler SE 4WD
- 2006 Jeep Wrangler Sport 4WD
- 2005 Jeep Wrangler Sport 4WD
- 2004 Jeep Wrangler Sport 4WD
- 2003 Jeep Wrangler Sport 4WD
- 2002 Jeep Wrangler Sport 4WD
- 2001 Jeep Wrangler Sport 4WD
- 2000 Jeep Wrangler Sport 4WD
- 1999 Jeep Wrangler Sport 4WD
- 1998 Jeep Wrangler Sport 4WD
- 1997 Jeep Wrangler Sport 4WD
- 2006 Jeep Wrangler Unlimited 4WD
- 2005 Jeep Wrangler Unlimited 4WD
- 2004 Jeep Wrangler Unlimited 4WD
- 2006 Jeep Wrangler Unlimited Rubicon 4WD
- 2005 Jeep Wrangler Unlimited Rubicon 4WD
- 2006 Jeep Wrangler X 4WD
- 2005 Jeep Wrangler X 4WD
- 2004 Jeep Wrangler X 4WD
- 2003 Jeep Wrangler X 4WD
- 2002 Jeep Wrangler X 4WD
- 2006 Jeep Wrangler X 65 Aniversario 4WD
- 2004 Jeep Wrangler Sahara 4WD
- 2003 Jeep Wrangler Sahara 4WD
- 2002 Jeep Wrangler Sahara 4WD
- 2001 Jeep Wrangler Sahara 4WD
- 2000 Jeep Wrangler Sahara 4WD
- 1999 Jeep Wrangler Sahara 4WD
- 1998 Jeep Wrangler Sahara 4WD
- 1997 Jeep Wrangler Sahara 4WD
- 2003 Jeep Wrangler X AT 4WD
- 2001 Jeep Wrangler 60 Aniversario 4WD
- 1997 Jeep Wrangler Base 4WD
**This item fits a ton of vehicles, so let's check to see if it fits yours. Don't see it on the list above? No worries, type your vehicle in the search bar above to see the full list of compatible vehicles.**
Install Instructions
For information on how to install your Teraflex 5" Pro LCG Long Flexarm Suspension System w/ High Steer & 9550 Shocks (97-06 Jeep TJ/Wrangler)
